High Speed Type Automatic PVC-coated Wire Laundry Hanger Making Machine

Model: QK-2YS

Features

* PLC & inverter control on all steps of wire hanger fabrication.

* Highly accurate feed of steel wire materials to ensure the uniform sizes of top quality hangers.

* Easier operation with touch screen makes a higher efficiency and productivity.

* Sensitive detection and swift emergency stop ensure less material consumption.

* By change of moulds, one machine could be used to produce hangers of different shapes / sizes.

Technical Specifications

Productivity: 30 ~ 35 pcs/min

Hanger size production range: 13''~15'' and 16'' ~ 18''

Applicable material diameter:Ø2.0-4.0mm, PVC-coated wire

Motor power: 2.2KW

Servo motor power: 1.5KW

Wire feeding motor power: 1.1KW

Net weight: 1000kgs

Plywood case packing dimensions: 1350*1300*1790mm + 1200*1200*800mm

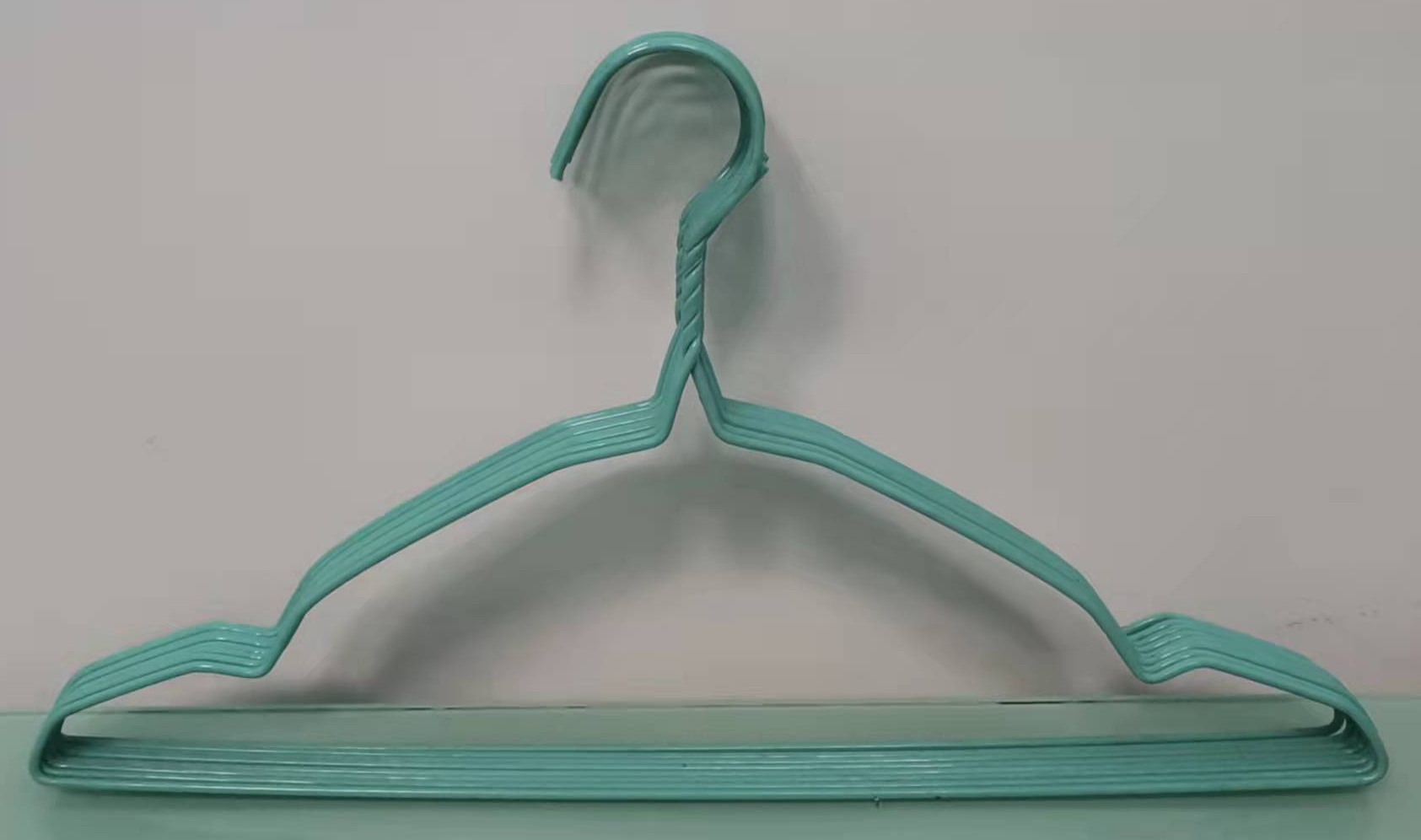

Various hanger shapes and sizes for reference:
