    OTO Type Wire Drawing Machine for Wire Processing

    Ask Lasest Price
    Brand Name : DURA
    Model Number : LW-560, LW-450, LW-350
    Certification : As Per Customer's Request
    Price : to be negotiated
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 100 Sets Per Month
    Delivery Time : 1-100 Pieces/15 Days; >100 To Be Negotiated
    • Product Details
    • Company Profile

    OTO Type Wire Drawing Machine for Wire Processing

    OTO Type Wire Drawing Machine for Wire Processing

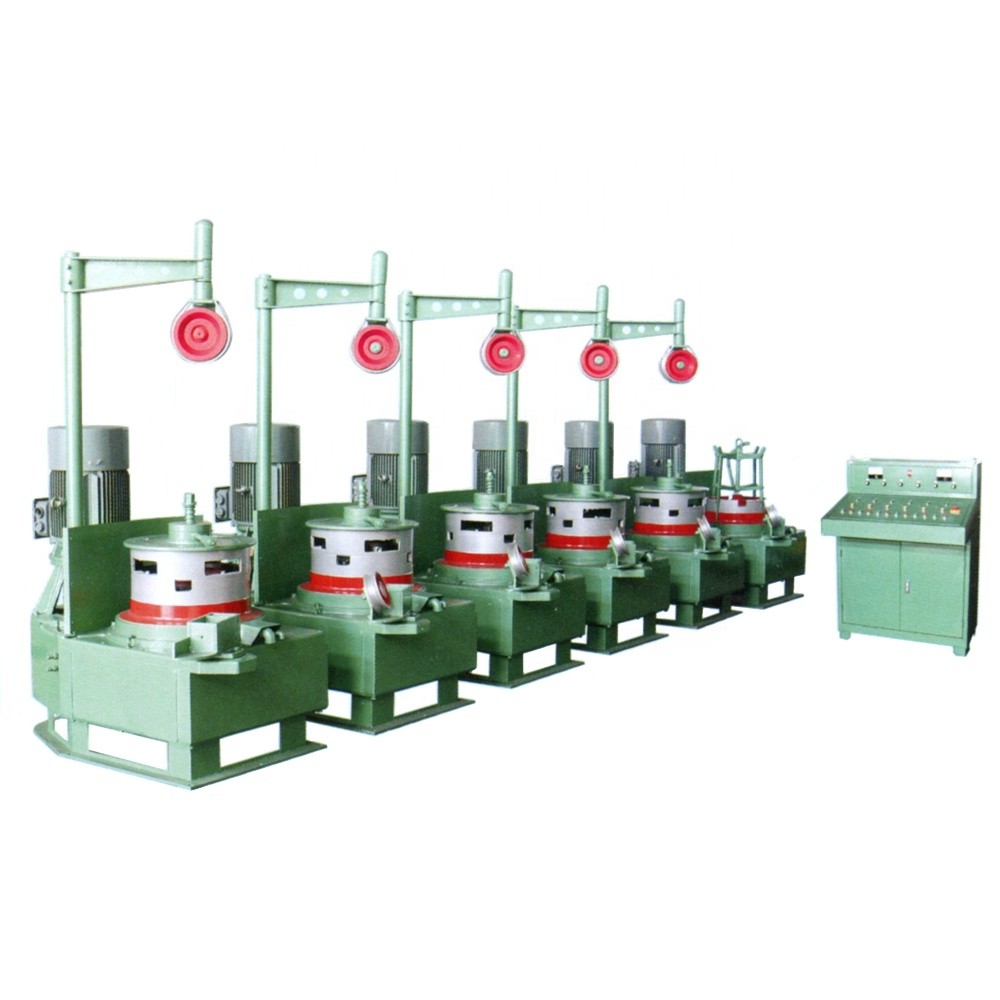

    LW Series Pulley Type Wire Drawing Machine

    Usage This kind of machine is an ideal equipment applied to draw high-, medium- and low-carbon steel wire , as well as copper,alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc.
    Structure The equipment consists of main reduction box ,die casing , wheel frame ,wire brace and electrical control system . the spinning drawing blocks are driven by JZT or Y series motor ,with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body , the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block ,the cooling device is installed in inter-wall of the block.
    The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.

    ItemContinuous Multi-block Type
    ModelUnitLW- n/ 560LW-n/450LW-n/350
    Max. drawing pass (n)n: 1 - 10n: 1 – 8n: 1- 8
    Tensile strength of wire rodKg/mm2>110128>140
    Max. dia. of wire rodmm6.53.42.5
    Min. dia. of finished wiremm2.510.75
    Typical configuration--LW1- 6/560LW1-7/450LW1-6/350
    Max. average reduction percent%302021
    Designed total reduction percent%78-88.577.978
    Max. speed of blockm/min.245 (block. 6)346.9 (block. 7)200 (block 6)
    Total powerkw18.5-307.5-117.5-11
    Weightkg200015001000
    Overall dimensions(L×W×H)mm1700x1150x17501520x810x17001400x800x1500
