    Automatic Coil Nail Collator, Coil Nail Welder

    Ask Lasest Price
    Brand Name : DURA
    Model Number : CNC-N3; CNC-N3 Upgraded Version; CNC-RN
    Price : to be negotiated
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 50 Sets Per Month
    Delivery Time : 1-3 Sets/45 Days; >3 To Be Negotiated
    • Product Details
    • Company Profile

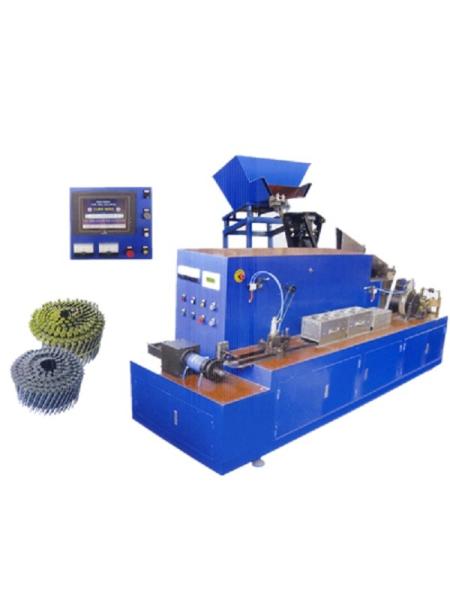

    Automatic Coil Nail Collator, Coil Nail Welder

    Automatic Coil Nail Collator, Coil Nail Welder


    Usage and Features

    This coil nail collator is a special kind of automatic welding equipment.
    Combined the advantages of world first-rate products with various feedback from users and long-term troubleshooting accumulation, so far the machines have been improved and upgraded to the 3rd generation with continuous introduction of the latest technology in automatic control system.
    Under regular vibrations, the disordered wire nails/roofing nails put in the vibrating feeder are guided to line up along the spiral passage against the wall of feeder and to get through a long downward groove to welding wheels, where two copper-plated wires are welded with the nails at a certain angle, 15° to 16°, then the welded nails are coiled to a fixed length as per the counter to cut off, forming a coil shape with flat top or cone top.
    Between welding and coiling, a rust-proof acrylic resin/lacquer dipping and drying unit can be inserted as a option upon buyer’s request ), at last each coil of nails is bound with a rubber band by an operator. The finished coil take-up can also be prformed by robot arm developed by our company for automatic coil take-up & stacking to save labor.

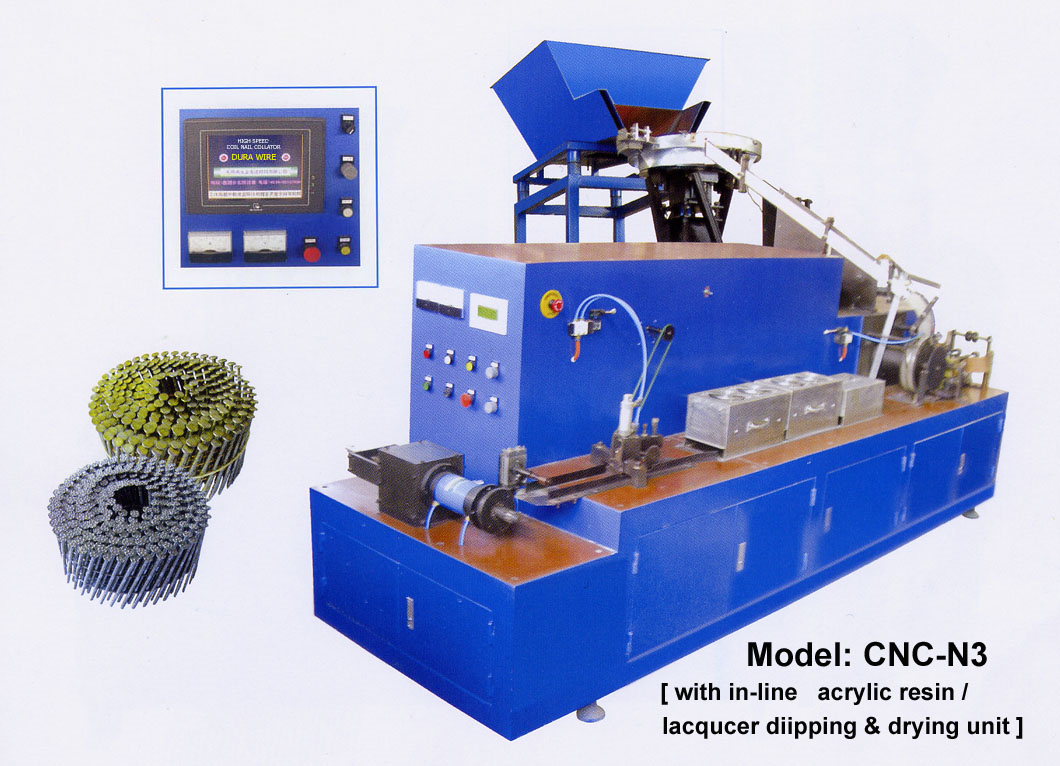

    Technical Specifications on Model: CNC-N3:

    ModelCNC-N3Applicable nail typescommon nail with smooth,
    annular, twisted(spiral thread) shank
    Applicable nail sizesCapacityElectronic control
    system
    PLC
    Dia. x Length:Welding speed:Touch Screen
    Ø1.8-2.5mm×25-75mm
    Ø2.7-4.0mm×75-100mm
    at 1250-2000 pcs/min
    at 800-1800 pcs/min
    Coil spec. :
    - Angle(1)
    - Nails per coil
    - Welding wires(2)

    15°- 16°
    200 – 400
    copper coated steel wire

    VF inverter
    Applicable power
    supply
    AC 380V, 50Hz, 3-phase
    (others available upon request, like: 220V, 60Hz, 3-phase)
    Adoption of Synchronous controller for high frequency spot-welding
    Welding current1000 – 1000A
    (secondary side)
    Compressed air≥ 0.4 – 0.8Mpa
    Cooling waterPressure required:
    0.1 – 0.2Mpa
    Rated power8KVANet WeightApprox. 1500kgs
    Max. power40KVADimensions

    2350 x 900 x 2000mm(S)

    2650 x 900 x 2000mm(L)


    Technical Specifications on Model: CNC-RN


    ModelCNC-RNApplicable nail typesRoofing nails with
    smooth or annular, twisted
    shank
    Applicable nail sizesCapacityElectronic control
    system
    PLC
    Dia. x Length:
    Ø2.1-3.05×19-75mm
    Welding speed:
    at 1000- 2500 pcs/min
    Touch Screen
    Coil spec. :
    - Angle(1)
    - Nails per coil
    - Welding wires(2)

    15°- 16°
    120
    copper coated steel wire

    VF inverter
    Applicable power supplyAC 380V, 50Hz, 3-phase
    (others available upon request, like: 220V, 60Hz, 3-phase)
    Adoption of Synchronous controller for high frequency spot-welding
    Welding current1000 – 1000A
    (secondary side)
    Compressed air≥ 0.4 – 0.8Mpa
    Cooling waterPressure required:
    0.1 – 0.2Mpa
    Rated power8KVANet WeightApprox. 1500kgs
    Max. power40KVADimensions2650 x 1600 x 2500mm
    Note: The technical specifications are subject to change for improvement purpose without further notice.
    (1) : In China many users prefer to apply the angle at 15.5° in order to accommodate the finished coil nails to air guns with 15° or 16°, otherwise an extra S.S. Nail Holding Wheel has to be separately ordered.
    (2): Recommended specifications of welding wires for common coil nails:
    In China the manufacturers use copper coated welding wires ,
    - popular size : dia. 0.6. 0.7, 0.75 to 0.8mm
    - diameter tolerance: +0.01/-0.02mm
    - tensile strength: 300 – 365 Mpa
    - elongation: ≥ 12%
    In addition, the stainless steel coil nails have to use stainless steel welding wires.
    Automatic Coil Nail Collator, Coil Nail Welder
    Magnetic Nail charger

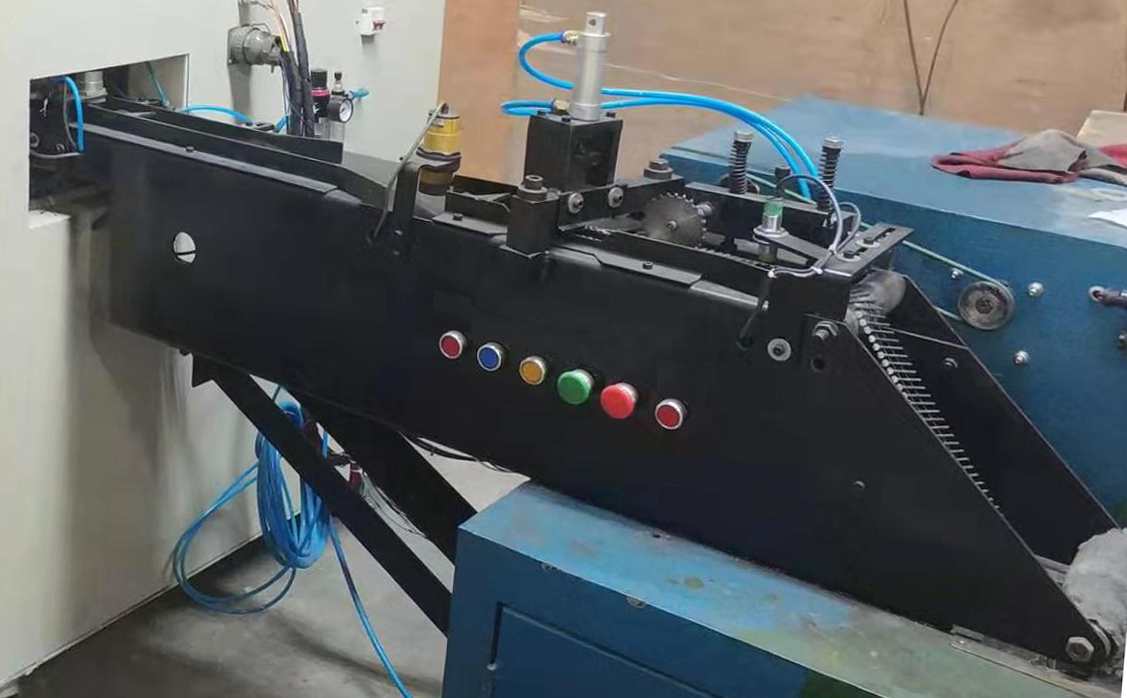

    Accessory for Auto Coil Nail Take-up
    Robot Arm for Auto Coil Nail Take-up
