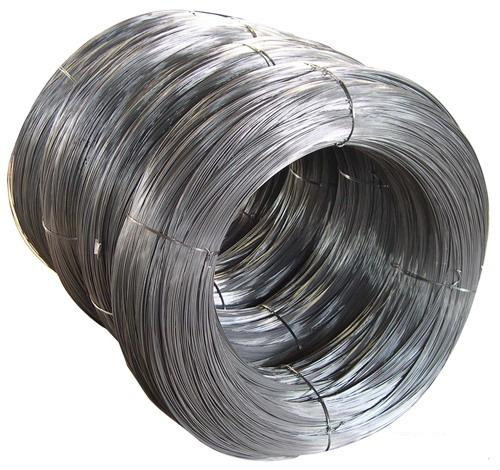

Steel Wire for Nail, Rivet, Screw Production

Tensile strength: 315-430(σb/MPa)

Features: high plasticity, ductility, welding performance and good pressure processing performance

Material code of different system corresponding to GB/T 700: Q195 - ASTM: Gr.B(σs185) - ISO: HR2(σs195) - гOCT: CT1Kп - JIS: SS330(SS34)(σs205) - DIN: St33 - BS: 040A10 - NF: A33

Note: the Chinese national standard steel number Q195 stands for "yield strength σs = 195MPa", which is an experimental value measured with a φ16mm steel rod. If the diameter is 16 ~ 40mm steel, the yield limit is 185MPa, which is the nomenclature adopted by ASTM in the United States.

Mechanical properties Elongation(δ5/%):≥33(thickness or diameter≦16mm),≥32(thickness or diameter>16-40mm)

Applications: Used to manufacture anchor bolts, rivets, low-carbon steel wires, tie rods, hooks, brackets, welded structures, etc.The wire rods are mostly cold drawn into low carbon steel wire or made of galvanized low carbon steel wire for tying, tensioning and fixing, or as wire mesh, rivets, etc
