Brand Name : | DURA |
Model Number : | AF-1C~14C |
Certification : | As Per Customer's Request |
Price : | to be negotiated |
Payment Terms : | L/C, D/P, T/T |
Supply Ability : | 1000 Sets Per Month |
Delivery Time : | Shipped in 15 Days After Payment |

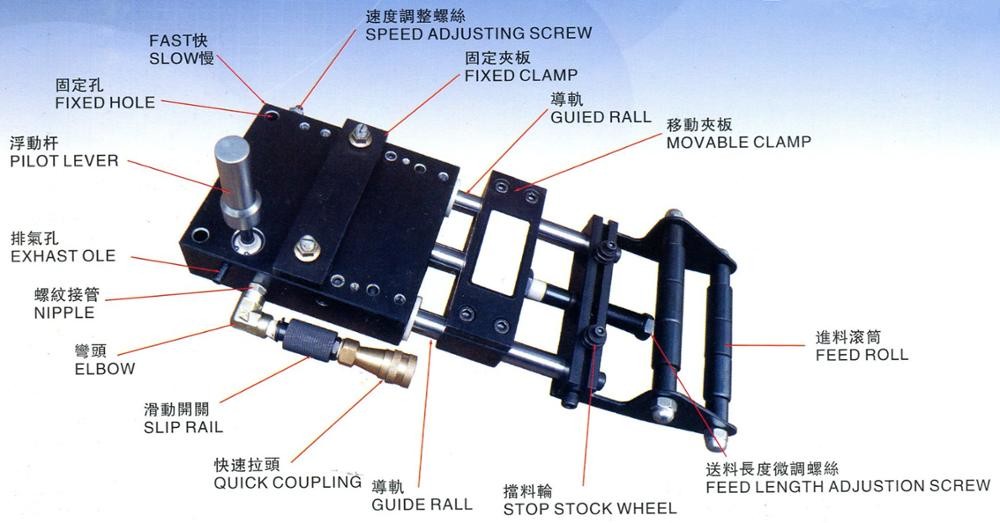

High Speed Pneumatic Feeder
1. Type of feeder: Standard type, E-type, Standard & R type; E & R
type
2. Applicable feeding material: metal strip, tape, plastic strip
3. A buffer is equipped on the models over AF-3C.
Air feeders, as a kind of automatic feeding device, are driven with
compressed air. They are widely applied for press, press machine or
punch, and it‘s for all industrial production.
Except the Standard type, other variations are all available upon
request. E-type air feeder (instead of pilot lever, fixed with a
pilot electromagnetic valve), Standard & R type air feeder (Based
on standard type, added with an electromagnetic valve to make the
fixed clamp carry a releasing function ) and E & R type (Both
electromagnetic pilot valve and releasing valves are fixed ) can be
supplied according to the real applications to different press
machines.
If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.
Technical Specifications
Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C | AF-10C | AF-12C | AF-14C |
Width Max.(mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
Length Max.(mm) | 50 | 80 | 80 | 130 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
Thickness(mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 |
Air press(kg/cm2) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
Speed Max.(times/min) | 200 | 160 | 150 | 93 | 80 | 60 | 48 | 40 | 30 | 23 | 20 |
Weight(kg) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 | 95 | 178 | 240 | 200 |
![]() |
