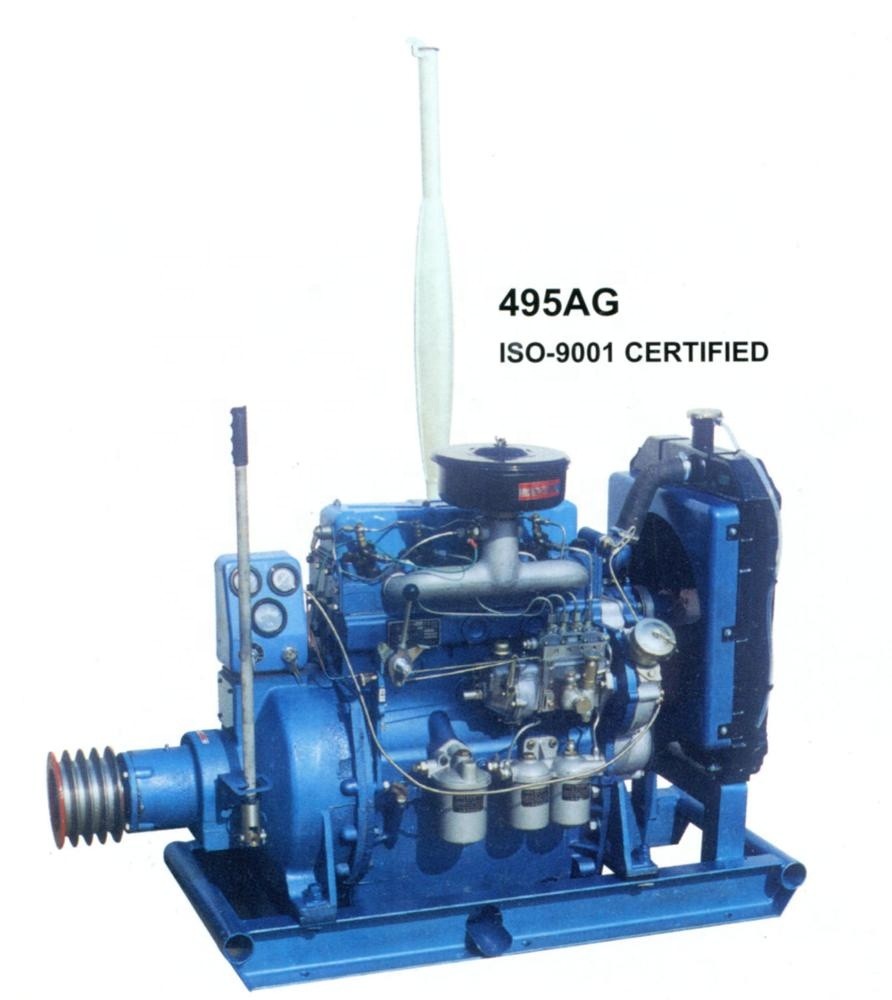

Diesel engine 95AG type - 395AG & 495AG

Usage and Features

95AG Stationary Power Unit is a version of Model 495A Diesel Engine which has continuously awarded the National Golden Medal prize thrice. Manufactured with advanced technology and reliable quality and has a good reputation both in domestic and worldwide market.(One complete 95AG Stationary Power Unit consists of a 95A Diesel Engine and a clutch)

Model	395AG	495AG
Cylinder number	3	4
Type	Water-cooling, vertical, in-line, four-stroke Spherical combustion chamber, left set engine
Cylinder bore(mm)	95
Piston stroke(mm)	115
Compression ratio	16.5:1
Rated power(KW)	26.5	35.3
Rated speed(r/min)	2000
Method of starting	By starting motor
Net weight(KG)	480	510

Remarks:

Optional Belt Pulley For 95AG Series Stationary Power Unit: 395AG: B Type 4-Groove Pulley is available; 495AG: C Type 6-Groove Pulley is available or B Type 5-Groove Pulley is available.
